Pictures of the Aero
My own pictures (Aero 4/33c)
- When I opened my Aero 433c I took 6 pictures from both sides of the
motherboard.
I have attached them to each other and thanks to Martin Ramsch they are
now available in many various resolutions:

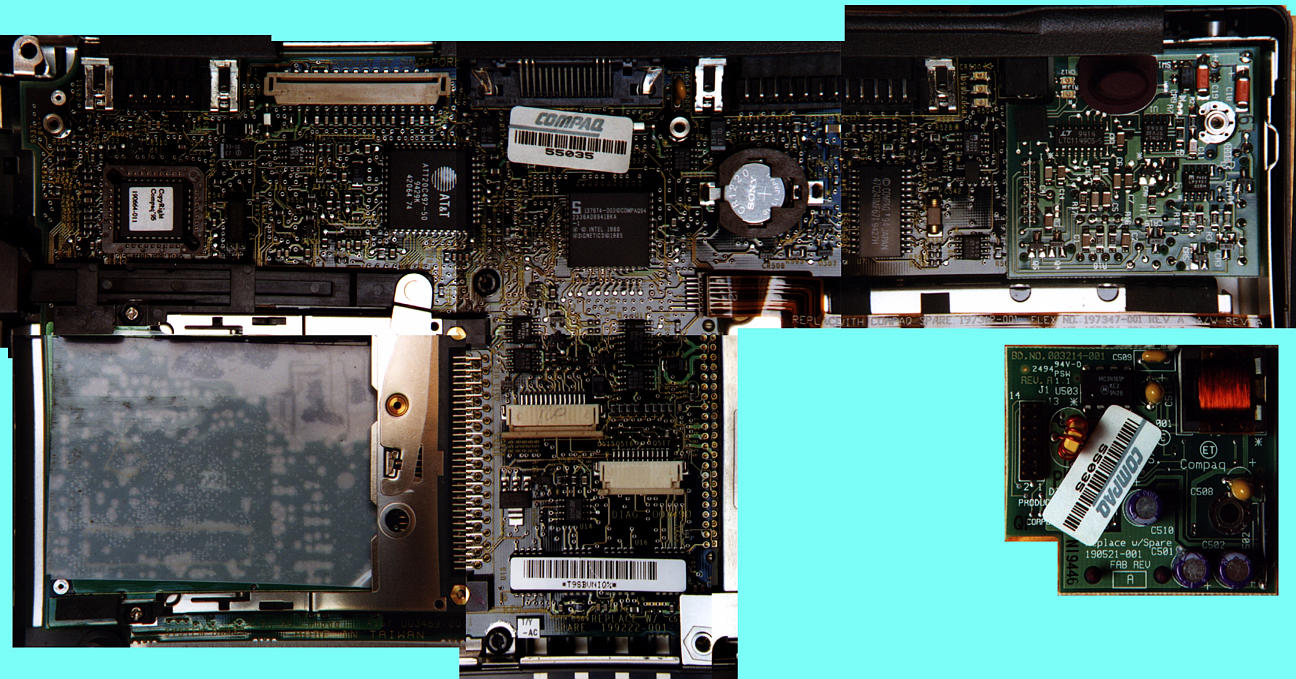

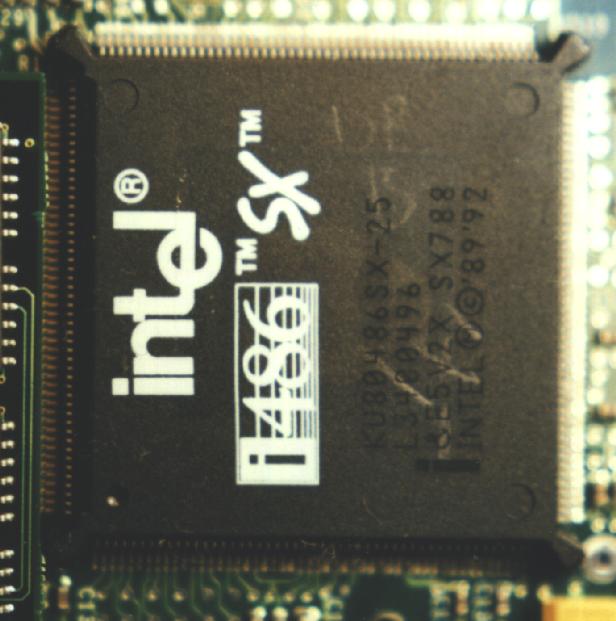

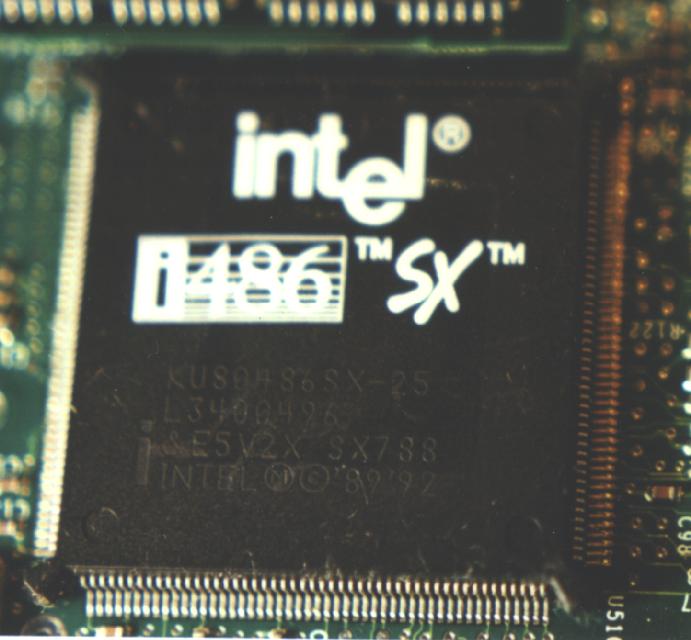

- The top of the motherboard:

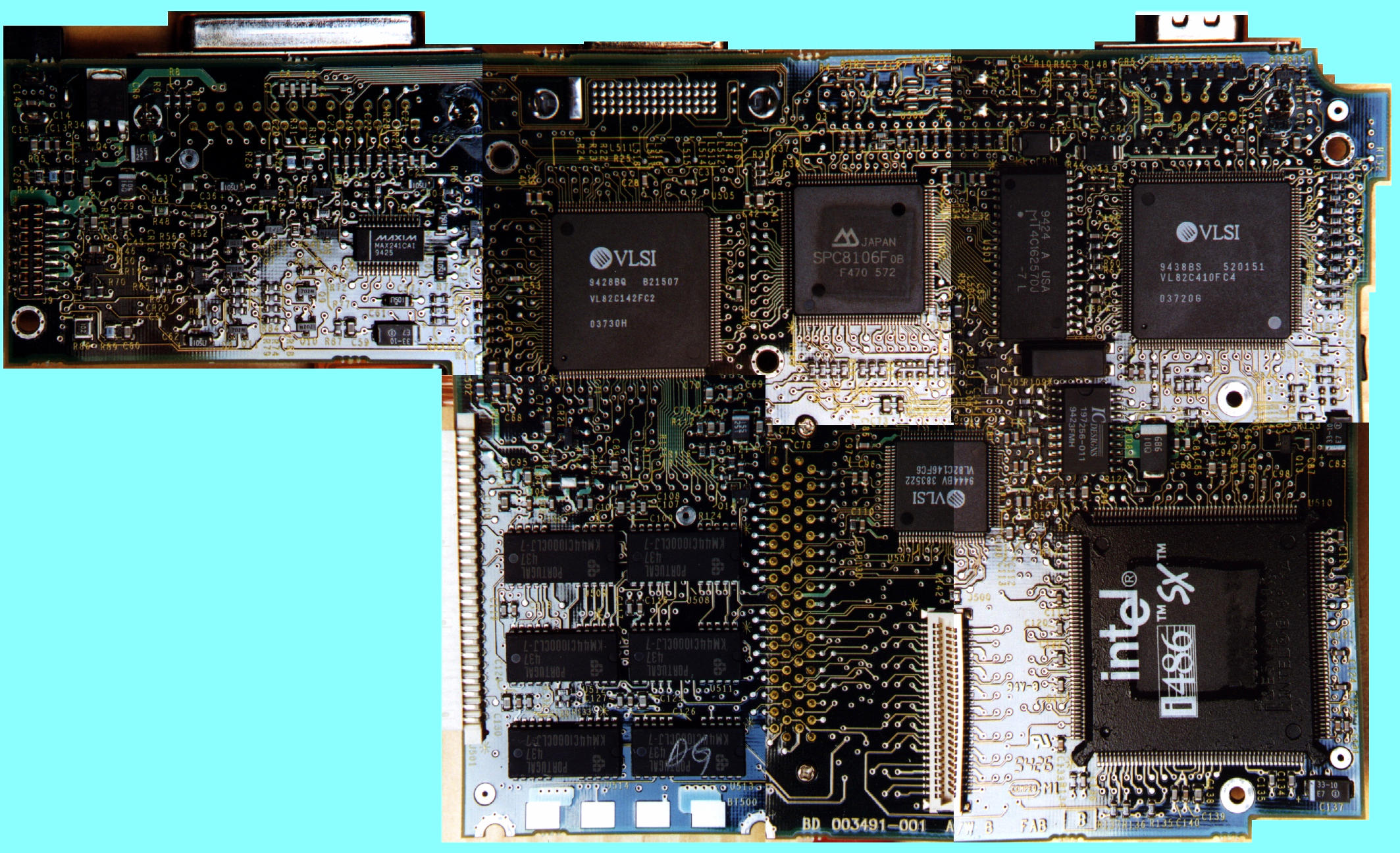

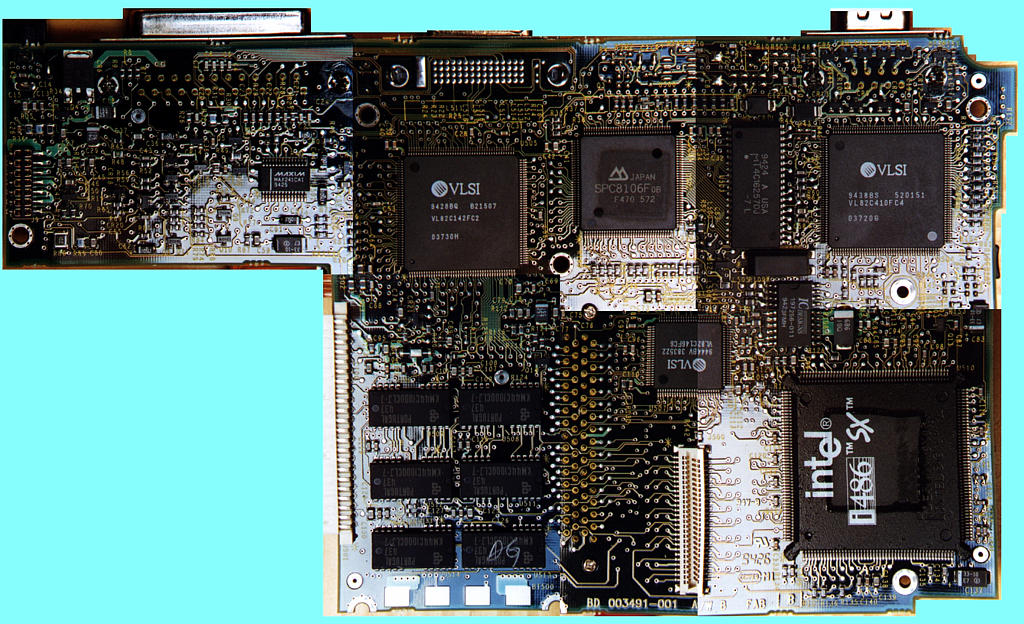

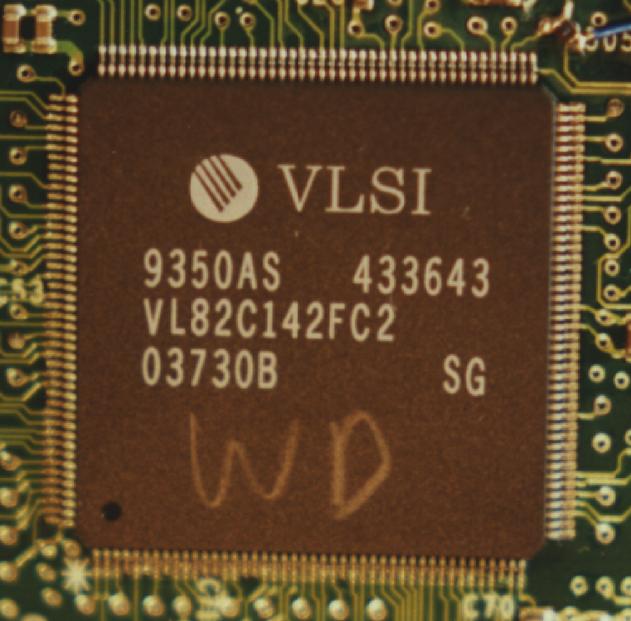

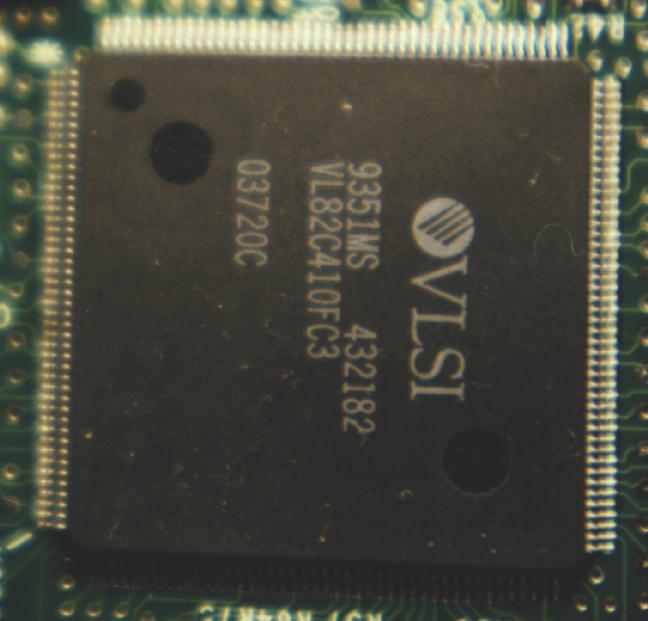

- The bottom of the motherboard:

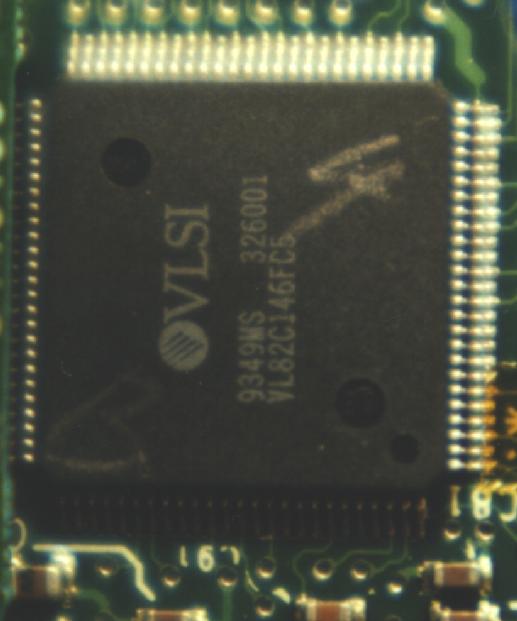

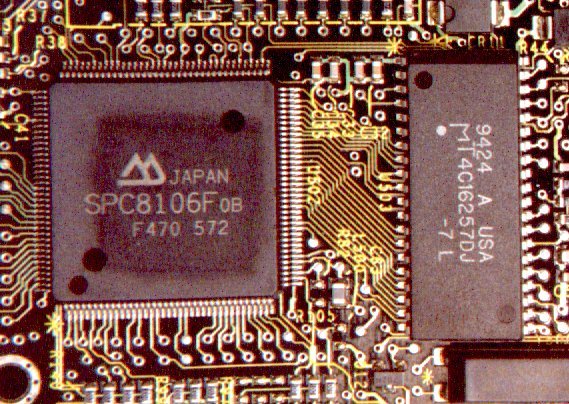

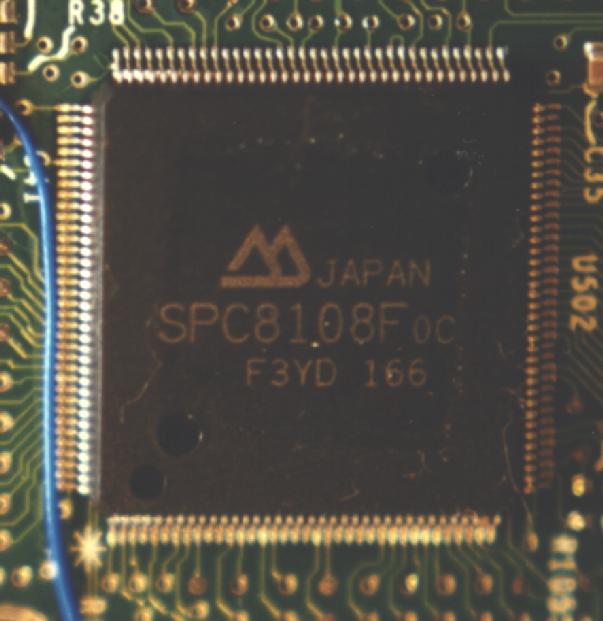

- LAP_VIDE.JPG the graphics chip with RAM - 106kB JPG
Pictures from Wagner Yotov (Aero 4/33c)
(do NOT do what he did!!!! - He did it all the way - once to the moon and back!!!)

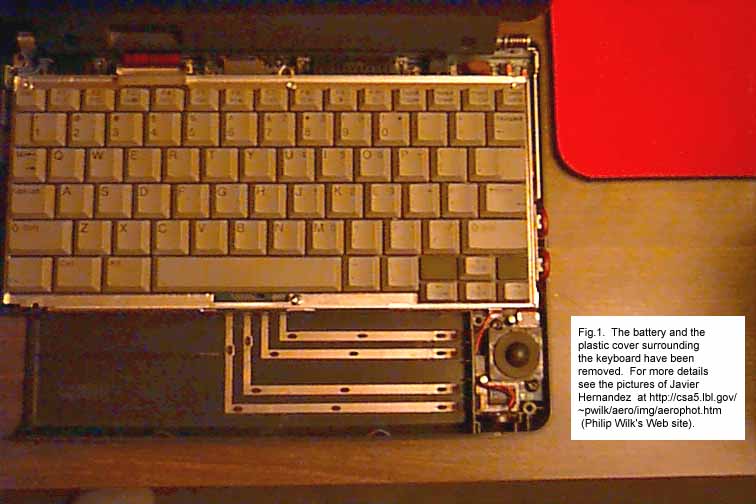

- FIG1.JPG plastic cover removed - 43kB JPG

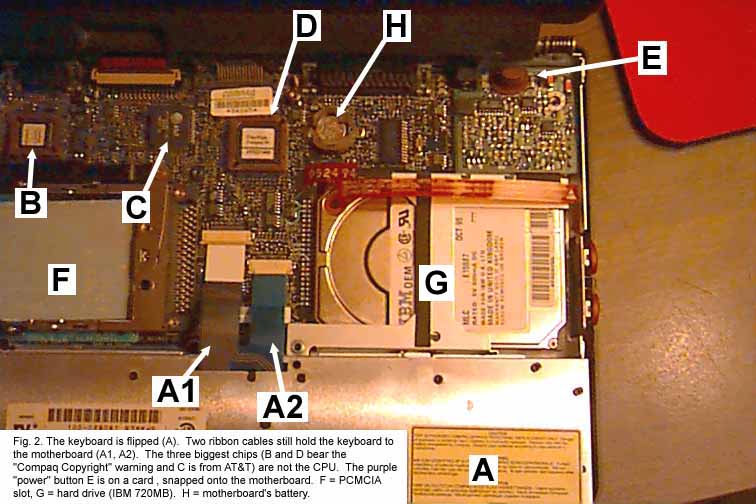

- FIG2.JPG keyboard flipped - 58kB JPG
- FIG3.JPG keyboard detached - 47kB JPG

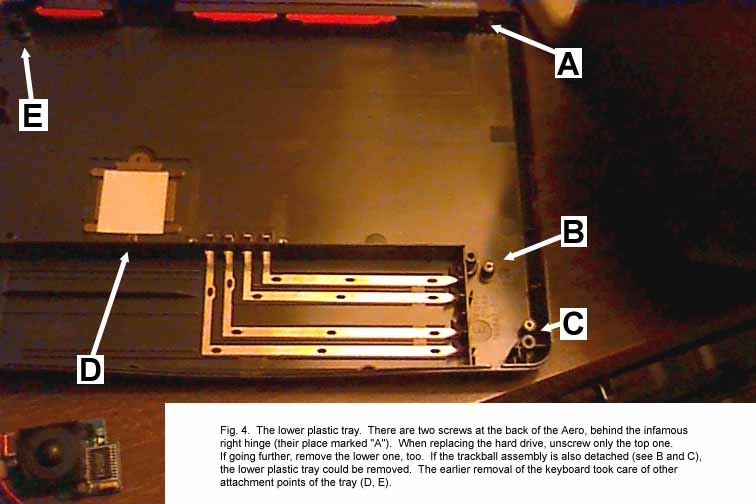

- FIG4.JPG lower plastic tray - 42kB JPG

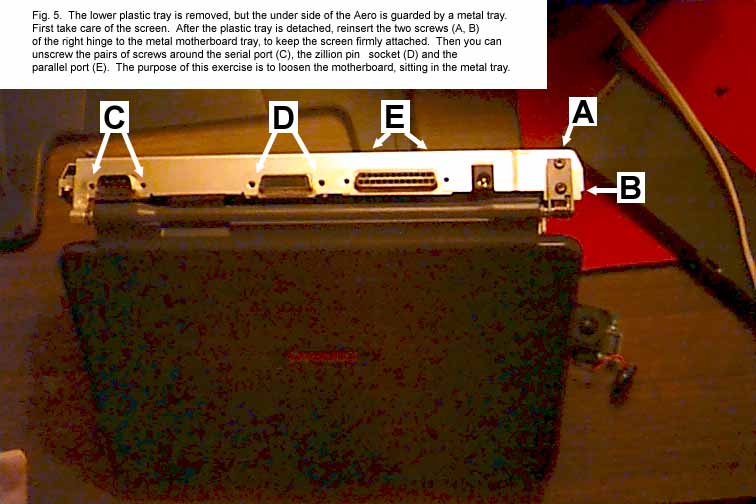

- FIG5.JPG metal tray - 47kB JPG

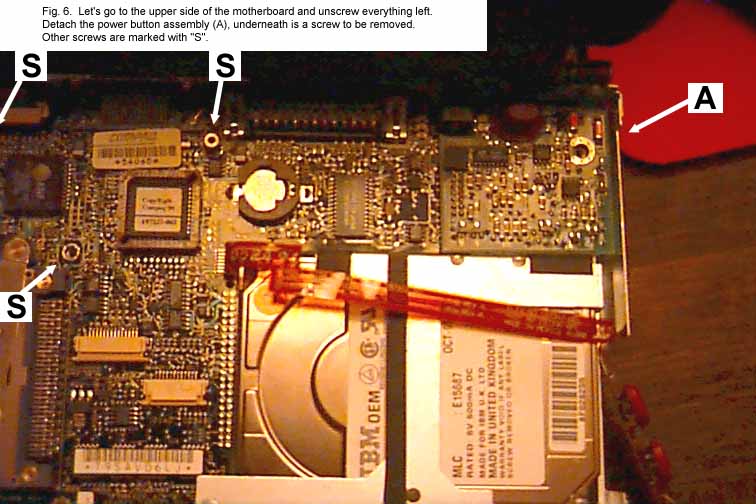

- FIG6.JPG the upper side of the motherboard - 58kB JPG

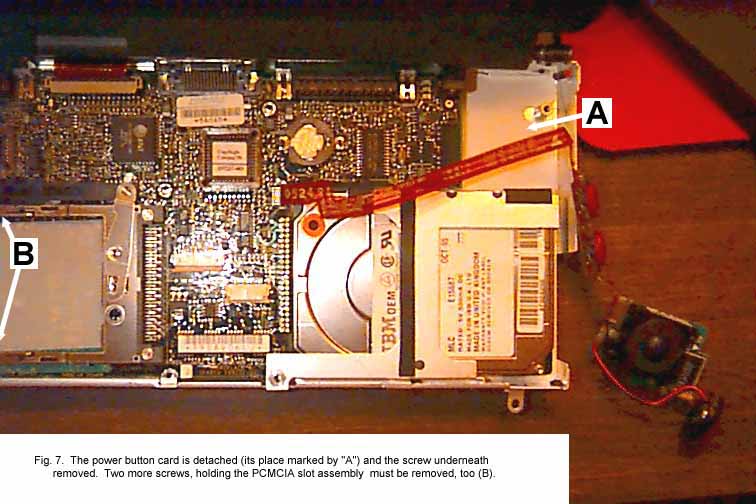

- FIG7.JPG power card detached - 57kB JPG

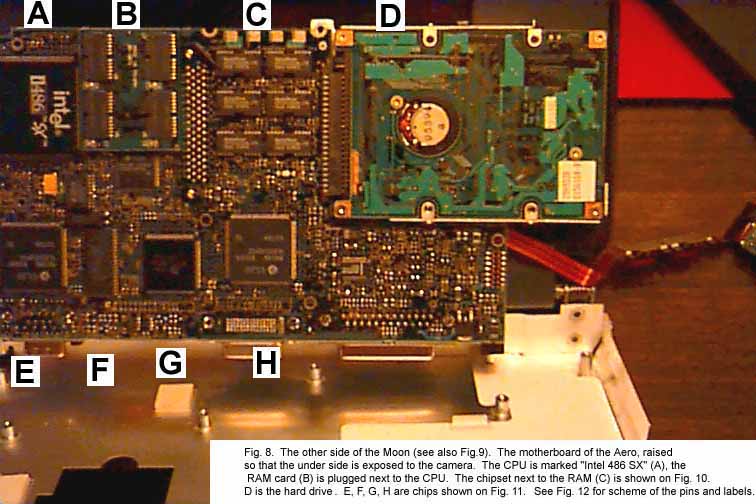

- FIG8.JPG the other side of the moon (!!) - 57kB JPG

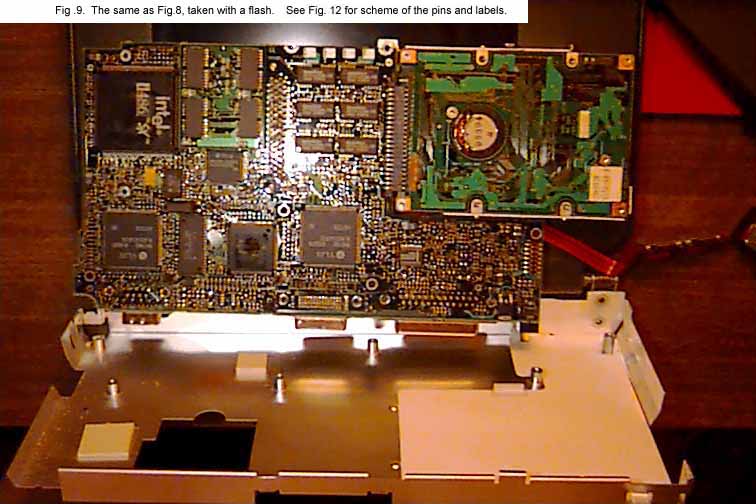

- FIG9.JPG similar fig8, overview - 55kB JPG

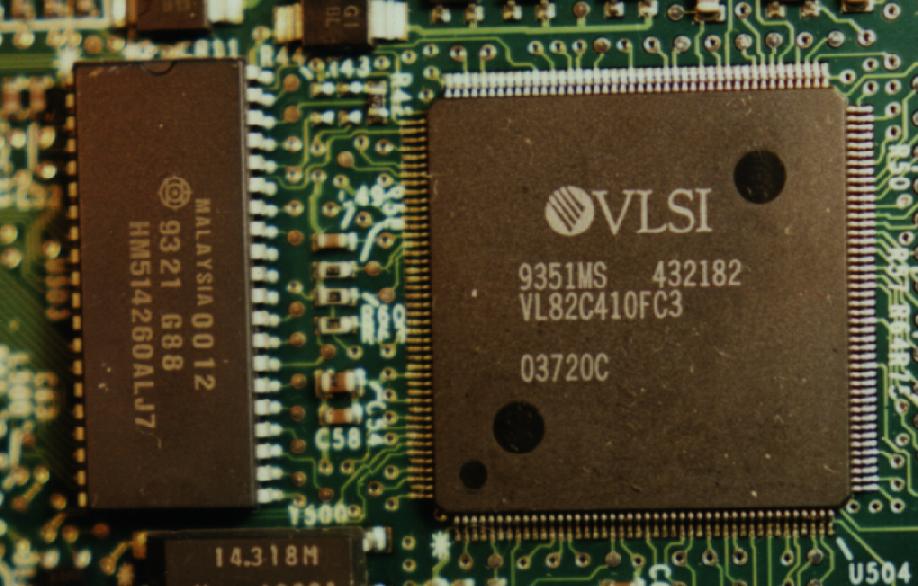

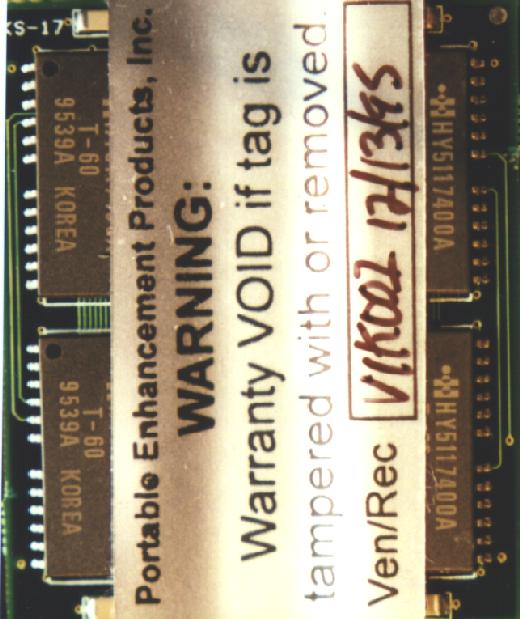

- FIG10.JPG 4MB ram - 44kB JPG

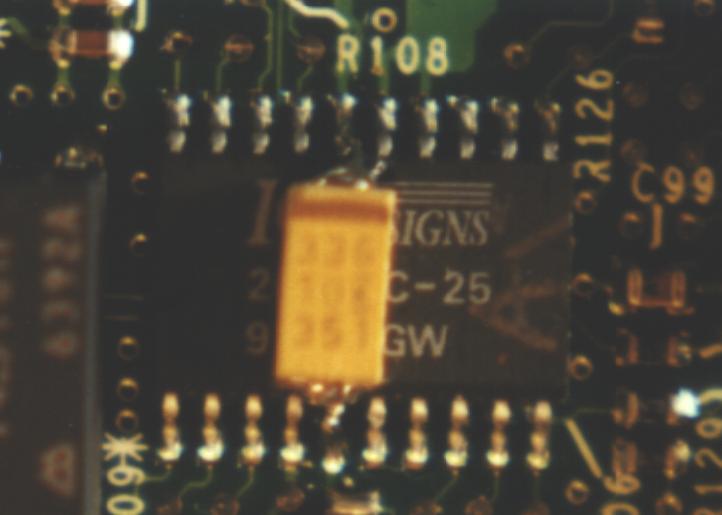

- FIG11.JPG the four chips near the screen - 57kB JPG
- FIG12.GIF scheme of pins and lables - 17kB GIF
Pictures from Javier Hernadez (Aero 4/25m)
Other pictures:
- This is what it looks like when your little aero´s screen is broken
- 9kB JPG 214x225 Pix
Lots of other pictures
